TIP #1 -

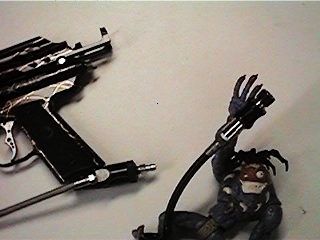

I unplugged my remote line ---- it was real hard and when it
came loose air went everywhere. Now when I plug it in it leaks.
|The above comment I here way more than I would like.
This is caused by not releasing all the air out of the hose before disconnecting. When you turn
your tank off there is still a considerable amount of air on the line. This needs to be bled off
completely. For safety sake if no other reason - that line can take off like whip and crack
somebody good.This is generally done by shooting the gun after you have turned off the tank
until it will not "pop" any air out whatsoever. As for the leak generally what happens is when
all that air was released it blew an o-ring out of the quick disconnect. This o-ring is just a
little bigger in diameter than a #2 pencil and sets in the bottom of the female portion of the
quick disconnect just below the ball bearings. When I replace these I usually put a urethane o-ring
in as opposed to rubber. They last longer and are not as sensitive to CO2.
Waddya mean did I get all the air out --- BOOM-WHOOOOOSH-AHHG
TIP #2 -

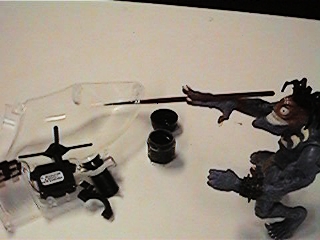

My motorized hopper won't stop running when sun is bright.
|This is a problem only with the clear or colored hoppers.
After considerable use the paint in the neck area will flake and/or get rubbed off.
This paint is to prevent ambient light from setting off the electric eye. The best
fix is to take the two halves of the loader apart and remove as much of the old paint
as possible and simply re-apply some paint to the neck of the loader and its surrounding
area ---- about an inch out from neck all the way around. I have had best luck with
model paint (the same hobby paint you would use to paint your favorite warplane).
Go away eets not finished yet it still needs more paint - I am an arteest!
TIP #3 -

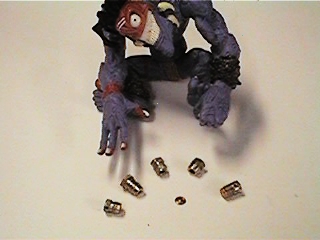

My burst disc blew and now my
dealer says I gotta buy a whole new valve. Why?
|The manufacturers and safety experts have determined that burst
disc assemblies need to be standardized and sold as one complete unit. The down side is there
have been 4-5 different size and thread pitched burst disc plugs built over the last 12-14 years
or so and the new burst disc assemblies are not always matching up with these older valves.
Please be extremely careful if/when trying replace a burst disc ---- if it doesn't thread in
easily or wobbles as it threads DO NOT USE. Be safe and buy a new valve they generally sell
for 12-15 dollars. That's a whole lot cheaper than body parts.Your tank valve should be replaced
every so often any way, brass is a soft metal and is prone to wear and tarnishing.
Eeny meeny minee mo pick a monster between his toes ---- how's a guy supposed to knows. I AM better off buying a new one!
TIP #4 -

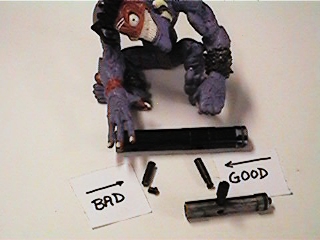

When I fire my gun it cycles but
no balls come out.
|Most blowback guns have a "hammer" or "striker" (same thing by the way)
and a "bolt" that are linked together in some manner. The most common way of doing this is with a
through pin passing through or connected to the bolt and slips down into the hammer/striker. These
pins take one heckuva whippin. In other words they suffer being beating back and forth every time you
fire the gun. They simply can't do that forever they eventually snap in two (or more). This part is
most commonly replaced in raptors and older illustrators but does/can happen on dozens of other models.
When this occurs the hammer goes back and forth as it should, but no longer being connected to the bolt
it doesn't chamber the balls into the barrel, which is the bolts job.
After all I've done for you ---- you went and split on me!
TIP #5 -

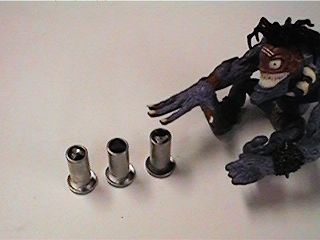

My automag is like a Waggoner power painter --- it breaks so much paint.
|The following is not always the case but is common enough to mention
here. Some of the older automag guns and even new guns upon request can have what is affectionately
called a "foamy" bolt. What this means is that glued onto the front of the bolt is a piece of foamy
rubber that cushions the ball as it is being fired. In colder weather or with extra brittle paint I
really prefer these to the "foamiless" bolts. Every so often this piece of rubber comes off --- it is
just glued on. Without it the balls roll to far back in the barrel and allow the ball above it to come
too far down and get pinched or sliced. When replacing the foamy the most important thing to do is
removed every last little bit of glue and old foamy from the bolt, and rough up the surface with a
pick or the blade of a screwdriver. The glue I recommend is the gel form of krazy or super glue. Be
sure to put glue on both surfaces also.
Is there something missing here? I can't seem to put my finger on it.
